環境：
EBS : R11.5.10
JDeveloper: p8751878_GENERIC.zip 解壓至 D:\OAF_R11i
實作：
Step 01: 準備好程式檔案：HelloWorldPG.xml & HelloWorldMainCO.java
HelloWorldPG.xml
| <?xml version = '1.0' encoding = 'UTF-8'?> <!-- dbdrv: exec java oracle/jrad/tools/xml/importer XMLImporter.class java &phase=dat+24 checkfile:~PROD:~PATH:~FILE &fullpath:~PROD:~PATH:~FILE -username &un_apps -password &pw_apps -dbconnection &jdbc_db_addr -userId "1" -rootPackage /oracle/apps/~PROD -rootdir &fullpath:~PROD:mds:directory --> <page xmlns:jrad="http://xmlns.oracle.com/jrad" xmlns:oa="http://xmlns.oracle.com/oa" xmlns:ui="http://xmlns.oracle.com/uix/ui" version="9.0.3.8.13_1579" xml:lang="en-US" xmlns:user="http://xmlns.oracle.com/jrad/user" xmlns="http://xmlns.oracle.com/jrad" file-version="$Header$"> <content> <oa:pageLayout id="PageLayoutRN" windowTitle="Polin-Demo: Hello World Window Title" title="Polin-Demo:Hello World Page Header" amDefName="oracle.apps.fnd.framework.server.OAApplicationModule"> <ui:corporateBranding> <oa:image id="corporateBrandingImage" source="/OA_MEDIA/FNDSSCORP.gif"/> </ui:corporateBranding> <ui:contents> <oa:messageComponentLayout id="MainRN" controllerClass="polin.oracle.apps.ak.demo.webui.HelloWorldMainCO"> <ui:contents> <oa:messageTextInput id="HelloName" prompt="Name" columns="20" maximumLength="50"/> <oa:messageLayout id="ButtonLayout"> <ui:contents> <oa:submitButton id="Go" use="/oracle/apps/fnd/attributesets/Buttons/Go"/> </ui:contents> </oa:messageLayout> </ui:contents> </oa:messageComponentLayout> </ui:contents> </oa:pageLayout> </content> </page> |
HelloWorldMainCO.java
| /*===========================================================================+ | Copyright (c) 2001, 2005 Oracle Corporation, Redwood Shores, CA, USA | | All rights reserved. | +===========================================================================+ | HISTORY | +===========================================================================*/ package polin.oracle.apps.ak.demo.webui; import oracle.apps.fnd.common.VersionInfo; import oracle.apps.fnd.framework.webui.OAControllerImpl; import oracle.apps.fnd.framework.webui.OAPageContext; import oracle.apps.fnd.framework.webui.beans.OAWebBean; import oracle.apps.fnd.framework.OAException; /** * Controller for ... */ public class HelloWorldMainCO extends OAControllerImpl { public static final String RCS_ID="$Header$"; public static final boolean RCS_ID_RECORDED = VersionInfo.recordClassVersion(RCS_ID, "%packagename%"); /** * Layout and page setup logic for a region. * @param pageContext the current OA page context * @param webBean the web bean corresponding to the region */ public void processRequest(OAPageContext pageContext, OAWebBean webBean) { super.processRequest(pageContext, webBean); } /** * Procedure to handle form submissions for form elements in * a region. * @param pageContext the current OA page context * @param webBean the web bean corresponding to the region */ public void processFormRequest(OAPageContext pageContext, OAWebBean webBean) { super.processFormRequest(pageContext, webBean); if (pageContext.getParameter("Go") != null) { String userContent = pageContext.getParameter("HelloName"); String message = "Hello, " + userContent + "!"; throw new OAException(message, OAException.INFORMATION); } } } |
Step 02: Import OA Page to MDS
R11i 的 import.bat 是在目錄 D:\OAF_R11i\jdevbin\jdev\bin 下：
| D:\OAF_R11i\jdevbin\jdev\bin\import.bat D:\OAF_R11i\jdevhome\jdev\myprojects\polin\oracle\apps\ak\demo\webui\HelloWorldPG.xml -rootdir D:\OAF_R11i\jdevhome\jdev\myprojects -username apps -password apps -dbconnection "(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=erpdb.polin.com)(PORT=1522))(CONNECT_DATA=(SID=TEST)))" |
檢查 MDS 是否有此筆資料
| SET serveroutput ON; BEGIN jdr_utils.printdocument('/polin/oracle/apps/ak/demo/webui/HelloWorldPG'); EXCEPTION WHEN OTHERS THEN DBMS_OUTPUT.PUT_LINE(SQLERRM); END; |
若要刪除此筆 MDS，則可以用 jdr_utils.DeleteDocument 的函數
| begin jdr_utils.DeleteDocument( '/polin/oracle/apps/ak/demo/webui/HelloWorldPG' ) ; end ; / |

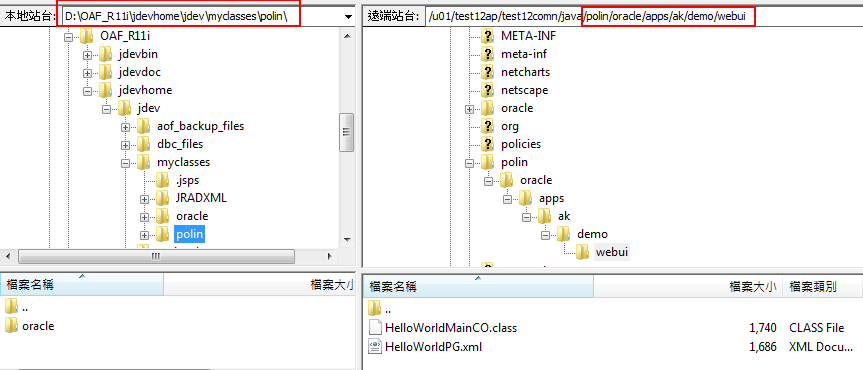

Step 03: FTP Upload class file to $JAVA_TOP
利用 FTP 工具將開發好所有 Package 的 class files，從開發本機目錄：D:\OAF_R11i\jdevhome\jdev\myclasses\polin\oracle\apps\ak\demo\webui，上載到 EBS 主機上的 $JAVA_TOP 相對應的目錄下，因為撰寫 Java 程式的 Package 為 polin.oracle.apps.ak.demo.webui ，所以 EBS 主機相對應的目錄為 $JAVA_TOP/polin/oracle/apps/ak/demo/webui
Step 04: Configure the Funtions
先規劃 Funtions 的相關屬性再作設定，HTML Call 則是 Step03 中，class file 上載到 EBS 主機上的 $JAVA_TOP 相對應的目錄下，此例為/polin/oracle/apps/ak/demo/webui/HelloWorldPG，所以HTML Call：OA.jsp?page=/polin/oracle/apps/ak/demo/webui/HelloWorldPG
| Function | User Function Name | Description | Function Type | HTML Call |
| POLIN_OAF | POLIN_OAF | Polin OAF Demo | SSWA jsp function |
OA.jsp?page=/polin/oracle/apps/ak/demo/webui/HelloWorldPG |
Step 05：Configure Menu
先規劃 MENU 的相關屬性再作設定
Menu Header
| Menu | User Menu Name | Menu Type | Description |
| POLIN_MENU | POLIN_MENU | Standard | Polin OAF Menu |
Menu Detail
| Seq | Prompt | Submenu | Function | Description |
| 10 | Polin_OAF_HelloWorld | POLIN_OAF | Polin_OAF_HelloWorld |
Step 06：Configure Responsibility
這樣就可以測試正常了
