Struts 2 Customize Theme & Freemarker Template 客制佈景與模板 說明了Struts2 的 tags 是可以自行客制成自已想要的佈景,現在來說明如何使用 FreeMarker 來制作 Struts2 屬於自已建作的 tag libs.
工具:
eclipse : Version: Mars Release (4.5.0) Build id: 20150621-1200
pom.xml:
struts2-core: 2.5.8
struts-annotations: 1.0.5 (不可以用 1.0.6 會出現 tlibVersion Missing 的錯誤)
commons-logging: 1.2
jsp-api : 2.2
javax.servlet-api : 4.0.1
|

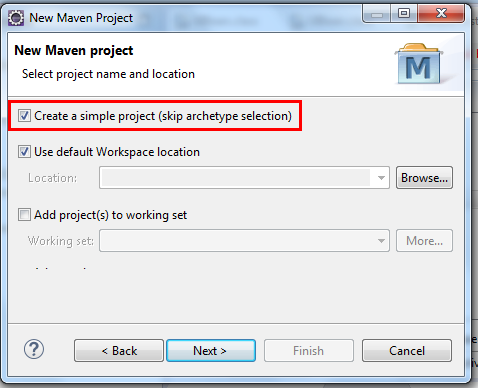

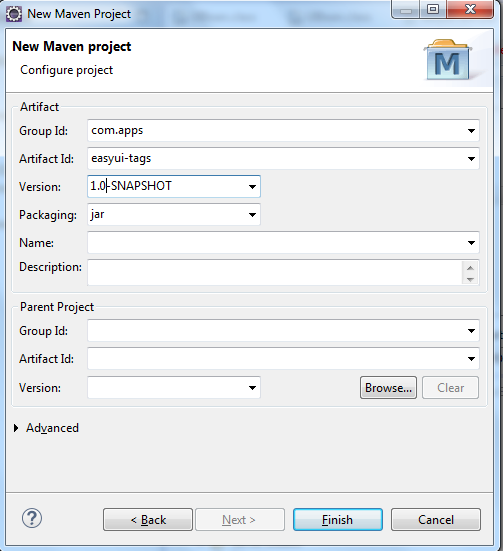

Step 01: 建立一個空的 maven project
Step 02: 建立客制的 class: HtmlTag.java 在 package com.easyui.struts2.views.jsp.ui 下
package com.easyui.struts2.views.jsp.ui;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.struts2.components.Component;
import org.apache.struts2.views.jsp.ui.AbstractClosingTag;
import com.easyui.struts2.components.Html;
import com.opensymphony.xwork2.util.ValueStack;
public class HtmlTag extends AbstractClosingTag {
@Override
public Component getBean(ValueStack stack, HttpServletRequest req, HttpServletResponse res) {
return new Html(stack, req, res);
}
} |
Step 03 : 建立客制的 class: Html.java 在 package com.easyui.struts2.components , 此檔主要是要產生 .tld 的標籤描述檔, 以及告訴 freemarker 要讀取那一個 ftl , 此範例是要有 html.ftl 與 html-close.ftl 這兩個檔案.
package com.easyui.struts2.components;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.struts2.components.ClosingUIBean;
import org.apache.struts2.views.annotations.StrutsTag;
import com.opensymphony.xwork2.util.ValueStack;
@StrutsTag(
name="html",
tldTagClass="com.easyui.struts2.views.jsp.ui.HtmlTag",
description="建立一個空的 HTML 結構",
allowDynamicAttributes=true)
public class Html extends ClosingUIBean {
public Html(ValueStack stack, HttpServletRequest request, HttpServletResponse response) {
super(stack, request, response);
}
@Override
public String getDefaultOpenTemplate() {
return "html";
}
@Override
protected String getDefaultTemplate() {
return "html-close";
}
} |
註:
1. 在 pom.xml 中需加入 struts-annotations: 1.0.5 才可以使用 annotations 描述
2. @StrutsTag: annotation for marking a Struts tag
3. @StrutsTagAttribute: annotation for marking an attribute of a Struts tag
Step 04: 建立此 tags (標籤) 的 templates & theme
1. 建立 package: template.easyui 並撰寫 html.ftl 與 html-close.ftl
2. 建立 空的 package: template.easyui.html 用來存放 Tobago plugin 自動產生的相關樣版檔案
html.ftl 檔
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>${parameters.title}</title>
</head>
<body> |
html-close.ftl 檔
Step 05: 用 Tobago plugin 建立 TLD file 及使用 Maven 產生這個 taglib 的 jar 檔
請看附註二
Step 06: 佈署 (Deploy taglib in your Web application) , 將這個 taglib 的 jar 檔放在 WEB-INF/lib 下
記得要在 struts.xml 裡加入 <constant name="struts.ui.theme" value="easyui"/> , 這樣才會去讀取 JAR 檔 template.easyui 裡的 ftl 檔案
Step 07: JSP 裡使用客製的 tag libs
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<%@ taglib prefix="i" uri="/esayui-tags" %>
<i:html title="Basic Layout - jQuery EasyUI Demo">
hi easyui-tags
<s:form action="Login">
<s:textfield key="username"/>
<s:password key="password" />
<s:submit/>
</s:form>
</i:html> |
附註:
一、 Struts2 taglibs Introduction
Few words about the elements of the Struts2 UI component framework should help to understand better the scenario.
JSP Tag: implementation of the JSP tag (e.g TextFieldTag). Notice Struts2 has also Velocity and FreeMarker tags
UI Component: actual implementation of the behavior of the component (e.g TextField)
Template: FreeMarker template which renders the html markup (e.g. <input type=”text”….)
Theme: collection of templates (e.g. simple or ajax)
二、整個專案結構如下
註:
1. 在 pom.xml 中需加入 tobago 描述, 才會自動產生目錄: src/main/resources/META-INF 的 easyui-tags.tld 描述檔及 package: template.easyui.html 裡的 html.html
2. 目前 的編譯器 complier 需用 JDK 1.7.x 版才會成功, JDK1.8.x 會無法產生 easyui-tags.tld 描述檔 及相關的樣版檔
3. Tobago plugin 在 pom.xml 的設定如下:
<plugin>
<groupId>org.apache.myfaces.tobago</groupId>
<artifactId>maven-apt-plugin</artifactId>
<configuration>
<A>
uri=/esayui-tags,tlibVersion=${project.version},jspVersion=2.0,shortName=easyui,displayName="EasyUI Tags",
outFile=${basedir}/src/main/resources/META-INF/${project.artifactId}.tld,
description="EasyUI Tags",
outTemplatesDir=${basedir}/src/main/java/template/easyui/html
</A>
<resourceTargetPath>target</resourceTargetPath>
<fork>false</fork>
<force>true</force>
<nocompile>true</nocompile>
<showWarnings>true</showWarnings>
<factory>
org.apache.struts.annotations.taglib.apt.TLDAnnotationProcessorFactory
</factory>
<target>1.5</target>
<includes>
<include>**/*.java</include>
</includes>
</configuration>
<executions>
<execution>
<phase>compile</phase>
<goals>
<goal>execute</goal>
</goals>
</execution>
</executions>
</plugin> |
三、 完整的 pom.xml 檔
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.gu.apps</groupId>
<artifactId>easyui-tags</artifactId>
<version>1.0-SNAPSHOT</version>
<name>easyui-tags</name>
<dependencies>
<dependency>
<groupId>org.apache.struts</groupId>
<artifactId>struts2-core</artifactId>
<version>2.3.24.1</version>
</dependency>
<dependency>
<groupId>org.apache.struts</groupId>
<artifactId>struts-annotations</artifactId>
<version>1.0.5</version>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.1</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
</dependency>
</dependencies>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<build>
<plugins>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.1</version>
<configuration>
<encoding>UTF-8</encoding>
<source>1.5</source>
<target>1.5</target>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.myfaces.tobago</groupId>
<artifactId>maven-apt-plugin</artifactId>
<configuration>
<A>
uri=/esayui-tags,tlibVersion=${project.version},jspVersion=2.0,shortName=easyui,displayName="EasyUI Tags",
outFile=${basedir}/src/main/resources/META-INF/${project.artifactId}.tld,
description="EasyUI Tags",
outTemplatesDir=${basedir}/src/main/java/template/easyui/html
</A>
<resourceTargetPath>target</resourceTargetPath>
<fork>false</fork>
<force>true</force>
<nocompile>true</nocompile>
<showWarnings>true</showWarnings>
<factory>
org.apache.struts.annotations.taglib.apt.TLDAnnotationProcessorFactory
</factory>
<target>1.5</target>
<includes>
<include>**/*.java</include>
</includes>
</configuration>
<executions>
<execution>
<phase>compile</phase>
<goals>
<goal>execute</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
<resources>
<resource>
<directory>src/main/java</directory>
<excludes>
<exclude>**/*.java</exclude>
</excludes>
</resource>
<resource>
<directory>src/main/resources</directory>
</resource>
</resources>
<finalName>easyui-tags</finalName>
<defaultGoal>install</defaultGoal>
</build>
</project> |
參考:
https://bodez.wordpress.com/2009/03/13/customising-struts2-jsp-tags/
